Brand New · Available to Order
Floor plans made easy
Create accurate floor plans in minutes with Moasure LX1.
Walk a property to measure as you move, capturing walls, doors, windows, and staircases, to quickly generate accurate floor plans and footprints.
Walk a property to measure as you move, capturing walls, doors, windows, and staircases, to quickly generate accurate floor plans and footprints.
Accurate floor plans, instantly
Measure around obstacles
No cost per floor plan
Export to PDF, CAD and more
See Moasure LX1 at these shows:
Revolutionize the way you measure
Create instant, accurate floor plans using Moasure’s trusted motion sensor-based measuring technology.
Create complete floor plans in minutes
Color code rooms and add annotations in the Moasure app
Export to CAD, PDF, CSV or as an image

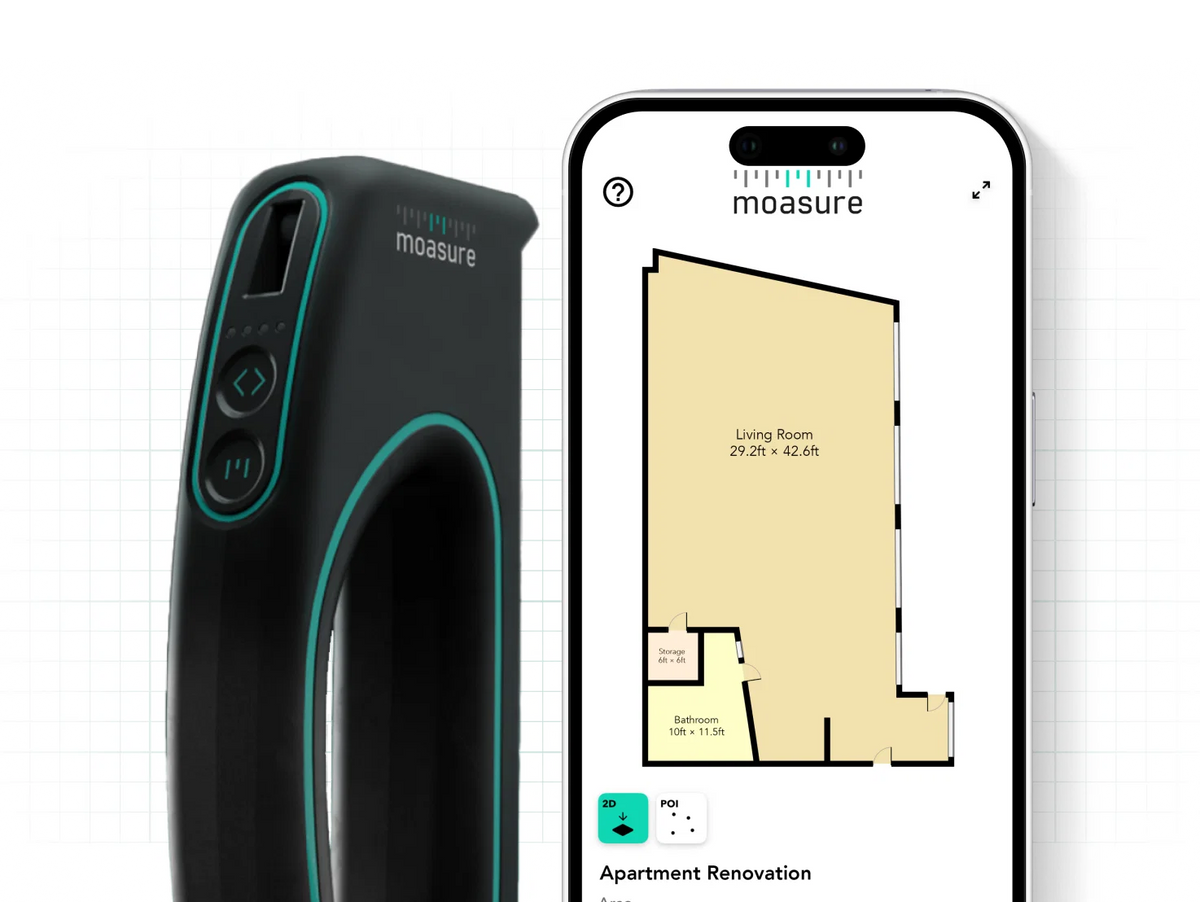

Measure and draw at the same time
Moasure LX1 is designed to do two jobs at once, not only measuring your floor plan but drawing it in real time.

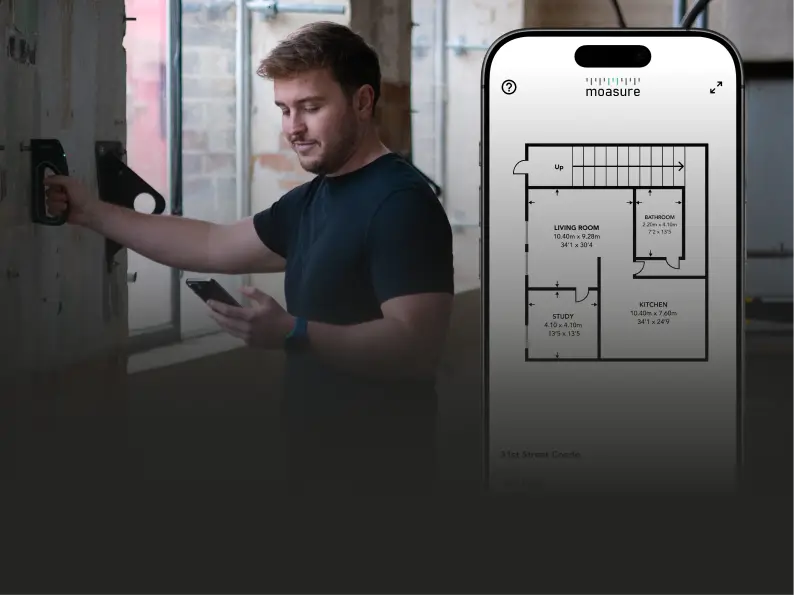

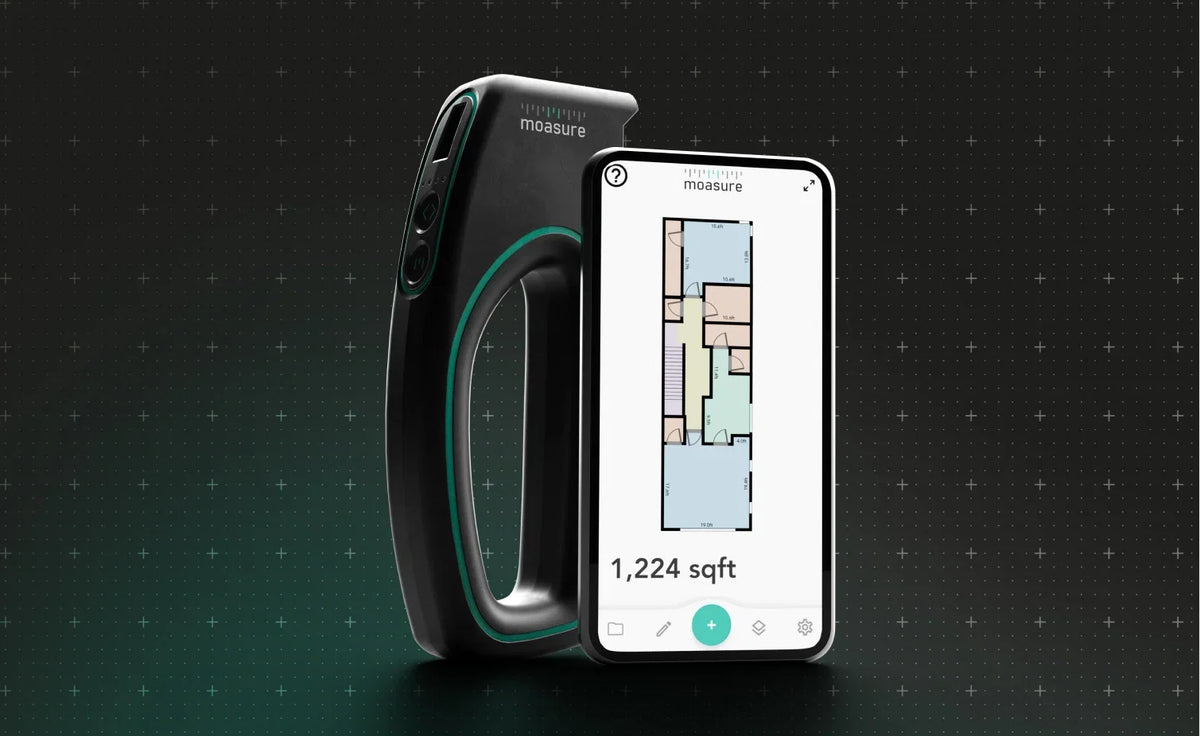

Visualize floor plans in real time

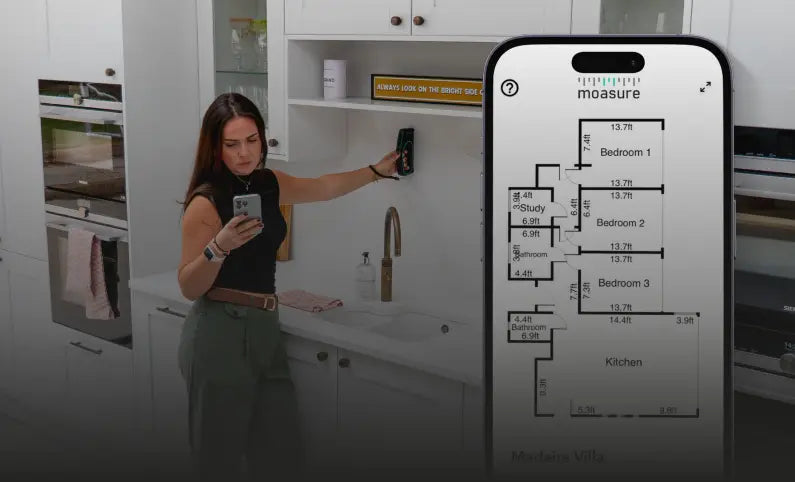

LX1 measures and draws simultaneously, meaning you can view your floor plan as it’s being created in the Moasure app.
Calculate square footage, wall thickness, and more
LX1 produces fully dimensioned floor plans including area, ceiling height and true wall thickness.

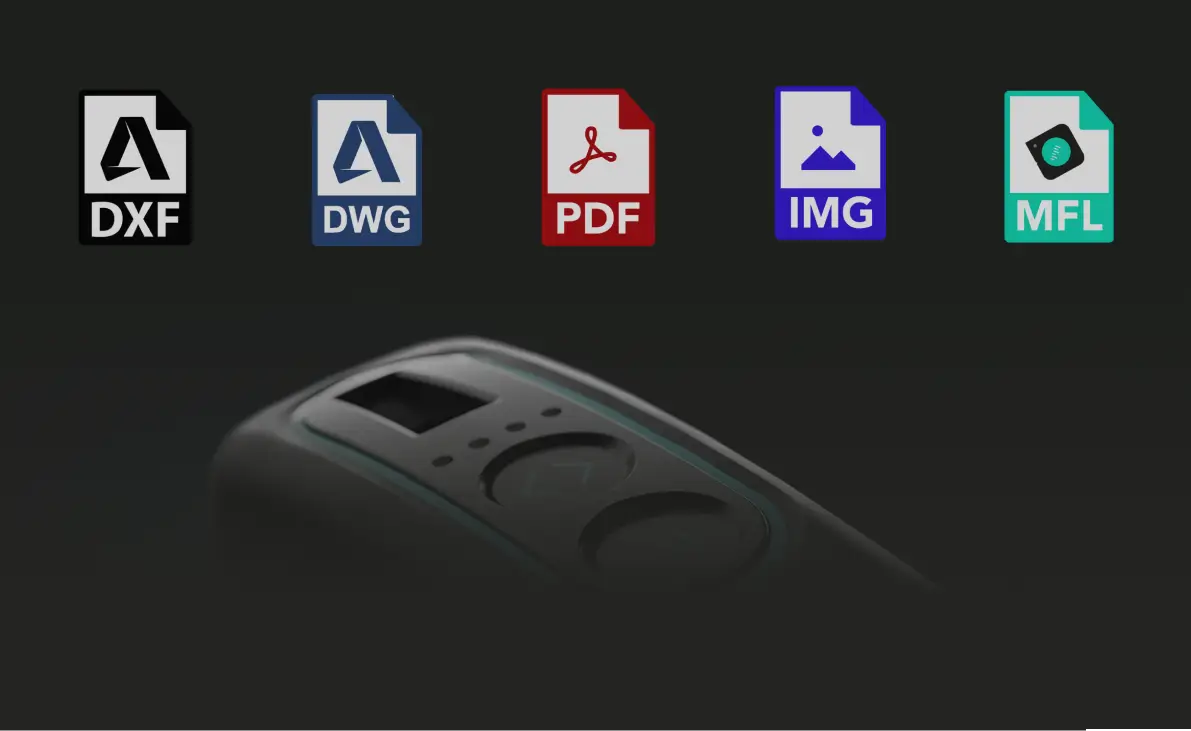

Export to CAD and PDF
Export your floor plan directly to CAD software or share as a PDF, CSV or image – ready for estimating, quoting, design and planning, or documentation.
Learn how Moasure LX1 works
Watch how to measure an indoor floor plan and a building footprint with Moasure LX1.
Indoor Floor Plans
Learn how Moasure LX1 builds a floor plan as you walk each room, capturing walls, doors and windows.
Building Footprints
Learn how to measure a building’s footprint in one walk around the exterior.
Built for a range of industries

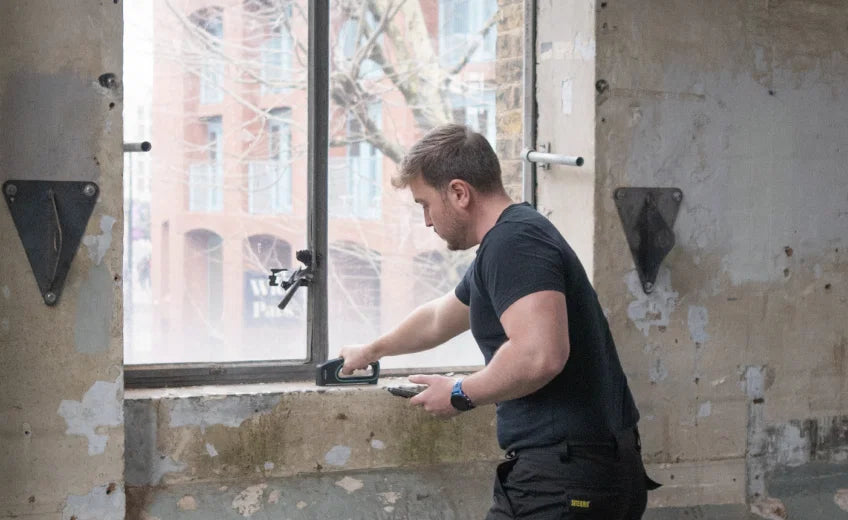

General Contracting
Remodeling
Real Estate

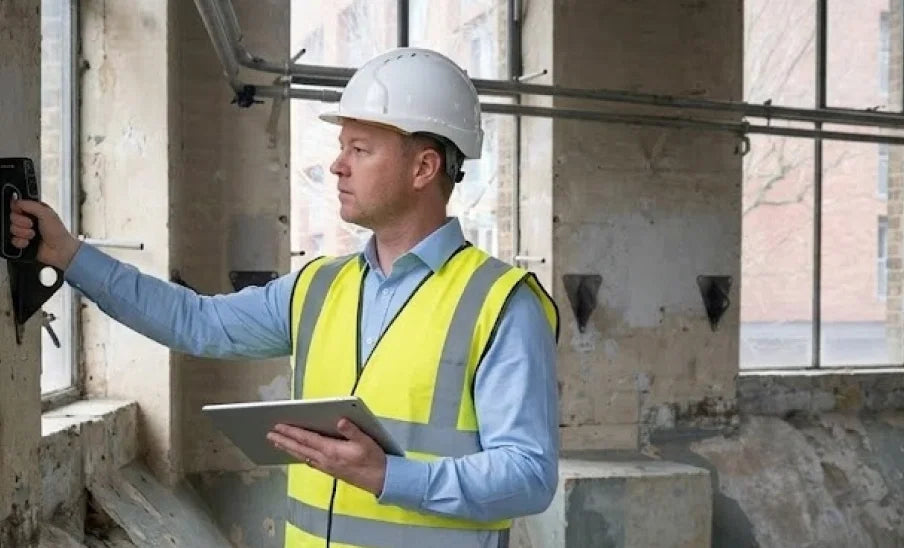

Architecture

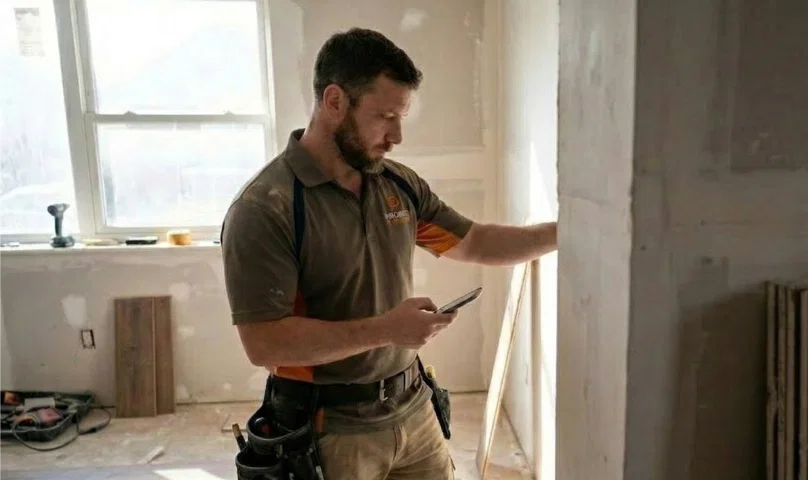

Flooring
See how Moasure fits into your workflow
Speak to a Moasure expert and discover how many hours you can save per week.
Speak to a Moasure Expert
Get your questions answered
Learn how Moasure can work for you
Book a live demonstration
Accurate to within 2 cm (1 in)
Save time – without sacrificing accuracy
Overall room widths and lengths are accurate to within 2 cm (1 in) for rooms up to 10 m (30 ft), and within 3 cm (1¼ in) up to 20 m (60 ft). These are accuracy bands – they don’t limit the size of room or floor plan LX1 can measure.
Explore Moasure LX1’s features
Integrated laser
By pairing Moasure’s motion sensor-based measuring technology with a laser, LX1 blends measurements for optimum accuracy.
Add doors and windows
Easily add and dimension key architectural features. Measure door and window widths and heights as you go.
Measure true wall thickness
Moasure LX1 can uniquely measure true wall thickness to accurately calculate both internal and external footprint areas.
Capture angled walls with ease
Effortlessly measure rooms with complex angles.
External building footprints
Measure and draw the footprint of a building by walking its perimeter.
Capture ceiling heights
Quickly capture ceiling heights by simply placing the device on the floor.
Try Moasure risk-free
Get the most out of Moasure – or get a full refund.
Moasure takes a little practice, but once you get the hang of it, you can cut hours from your workflow.
Our team of Moasure experts are on hand to guide you step by step.
If you decide it’s not for you within 60 days of delivery, just get in touch and you can return it for a full refund – no hassle.
Shop Moasure LX1
Sign up to our mailing list to be the first to hear when we launch
No subscription required
Moasure LX1
$1999
Sign up to be the first to know when we launch.
Create complete floor plans in minutes
Color code rooms and add annotations
Export to CAD, PDF, CSV or as an image
Shop Moasure LX1
Risk-free 60 day money-back guarantee
Frequently asked questions
Everything you need to know about Moasure LX1

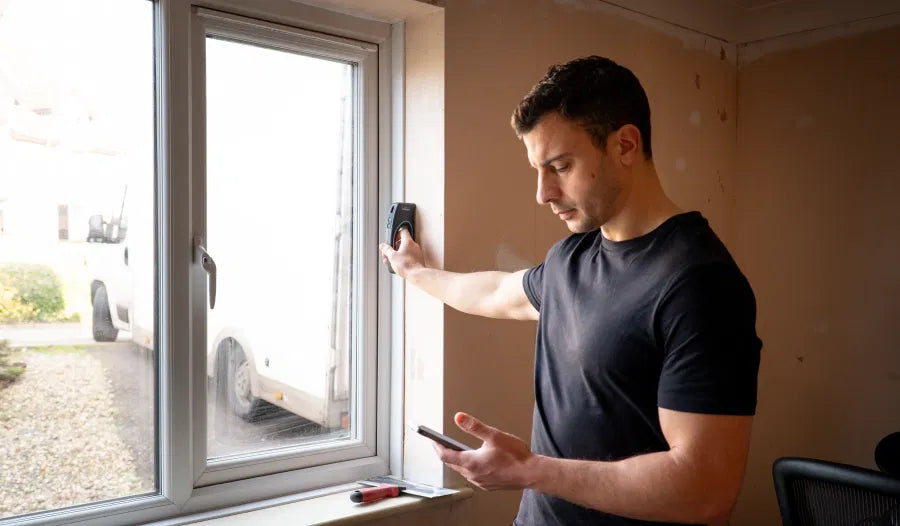

Simply place Moasure LX1 on each wall as you move around a room. Patented motion-sensor-based technology and an integrated laser work together to capture measurements, including doors, windows, wall thicknesses, and ceiling heights.
Your floor plan takes shape in the free Moasure app in real time, using doorways to connect rooms. With no room scanning, Wi-Fi, or line of sight required whilst measuring, your floor plan is ready as soon as you finish.
Moasure LX1 captures overall room dimensions to within 2 cm (1 in) for rooms up to 10 m (30 ft), and within 3 cm (1¼ in) for dimensions up to 20 m (60 ft).
For larger spaces, LX1 continues measuring with accuracy of ±0.5% for individual room dimensions over 20 m (60 ft). Complete multi-room floor plans have an overall dimensional accuracy of ±0.75%.
LX1 is designed for floor planning and estimating, rather than structural work or applications requiring critical dimensional precision.
Moasure LX1 can capture additional property details including: doors, windows, stairs, closets, wall thicknesses, window heights, and ceiling heights. You can also add room labels, add annotations, and mark points of interest in the Moasure app to build a more useful record of the space as you measure.
Our team are continuously developing new features to expand the LX1 software functionality, directly based on feedback from professionals who use it day-to-day.
Moasure LX1 can measure angled walls and irregular floor plans, so spaces do not need to be perfectly square or have 90° corners. As you move around the room and place LX1 against each wall, the device tracks its position and builds the floor plan in 2D on the app.
At present, we do not support curved or radius wall measurements, but this is on our feature roadmap.
Moasure LX1 supports a range of export formats, including:
Scaled PDFs
CAD-ready files (DXF, DWG)
CSV
Image files (JPEG, PNG)
We recommend checking your software’s supported file formats and version requirements to ensure compatibility with LX1’s file types.
No. Moasure LX1 is a one-time purchase, with no mandatory subscription or per-plan fees. Software improvements, updates, and new features for the app are also provided free of charge to all Moasure LX1 users.
No problem! Moasure LX1 does not require a clear line of sight to accurately capture measurements, so this can often be worked around. In most cases, if the obstacle is in the corner of a room, you can simply place the device on the next adjacent wall plane and Moasure LX1 will extrapolate the corner for you.
With Moasure LX1, you can measure one floor per single measurement file. For example, this means that you can record two separate floors across two measurement files, and then later export and combine them in external software to position them next to one another.
You can add room labels, colours, annotations, and define points of interest in the Moasure app to provide additional context to your floor plan. Use the app’s Swap tool to change door and window types to match the property.
If you make a mistake, or want to undo part of the room measurement, we’d recommend remeasuring that specific room to ensure the best level of accuracy.
For more detailed modifications, you can export your floor plan in DWG or DXF format to compatible CAD or design software, where you can make further adjustments to suit your project.
Whilst Moasure LX1 is mainly for internal floor plan generation, you can also use the device to create exterior building footprints by placing the device against each wall and capturing the dimensions.
Moasure LX1 is not designed to specifically measure the surface area of external walls.
When you purchase, your order will come with:
Moasure LX1 device
USB-C cable for charging
Protective carry case
Wrist strap
We also have an in-depth online user guide for LX1, video tutorials and support available from our customer service team.
Every order comes with a 60-day money-back guarantee, and a 2-year warranty for peace of mind.
The Moasure app is free, works with Android and iOS devices, and can be downloaded from the App Store/Google Play Store.
Award-winning technology – re-imagined for floor plans
Until now, Moasure technology has typically focused on outdoor measuring. Alan Rock, Moasure Co-CEO, explains why we’re applying our unique measuring technology to a floor plan tool.
Tried and tested measuring solutions
We've delivered over 110,000 measuring tools since 2019
x2 Honoree
x2 Award winner
Featured in
x3 Award winner
2024 Award winner
Featured in
Moasure has been shipping measurement tools since 2019. As of today we've served over 110,000 professionals across 100 countries.
Our technology has been recognized at CES, the world’s biggest consumer tech show, and at World of Concrete. We’ve also won two King’s Awards, the UK’s most prestigious business honor, for Innovation and for International Trade.
Every device is tested against our accuracy standards before it leaves us, so you can rely on the numbers from day one.
